Learn REST APIs

A REST API is an API that follows the design principles of the REST (or REpresentational State Transfer) architecture. In this guide, you will learn about what REST APIs are.

What is an API?

Imagine that you want to book a flight online. You go to a travel booking website and enter your travel details, such as your destination, travel dates, and preferred airlines. The website then shows you a list of available flights and prices.

Behind the scenes, the travel booking website is using an API to communicate with the airlines' reservation systems. The API acts as a bridge between the travel booking website and the airlines' reservation systems, allowing the website to request flight information and prices from the reservation systems, and display them to you in a user-friendly way.

Loading component...

In this scenario, the API specifies a set of rules and protocols for how the travel booking website can request flight information from the airlines' reservation systems. The API defines the data format, authentication mechanisms, and other technical details that are necessary for the travel booking website to interact with the airlines' systems.

Without the API, the travel booking website would have to manually enter and manage all the flight information and prices from each airline, which would be time-consuming and error-prone. The API streamlines the process by providing a standardized way for the travel booking website to access and display the airlines' flight information to you.

Loading component...

What is HTTP?

HTTP is an application layer protocol, which means that it provides a standardized way for applications to communicate with each other over the internet. HTTP defines a set of request methods, response codes, headers, and message formats that are used to exchange data between clients and servers.

Request methods

HTTP defines several request methods (also known as verbs) that can be used to perform different types of actions on a resource. Some of the most common request methods include:

GET

Think of GET as asking the server for a resource, like a webpage or an image. When you type a URL into your browser and hit Enter, your browser sends a GET request to the server asking for the contents of that webpage.

Click on the Submit button below to make a GET request.

Loading component...

POST

POST is like submitting a form to the server with some data. For example, when you submit a login form on a website, your browser sends a POST request to the server with your username and password.

Click on the Submit button below to make a POST request.

Loading component...

PUT

PUT is like updating a resource on the server. For example, if you edit your profile information on a website, your browser might send a PUT request to the server with the updated information.

DELETE

DELETE is like asking the server to delete a resource. For example, if you want to delete a post on a social media website, your browser might send a DELETE request to the server.

Click on the Submit button below to make a DELETE request.

Loading component...

PATCH

PATCH is like updating a resource on the server, but only changing part of it. For example, if you only want to change the caption on an image on a website, your browser might send a PATCH request to the server.

Click on the Submit button below to make a PATCH request.

Loading component...

Response codes

HTTP defines a set of response codes that indicate the status of a request. These codes are three-digit numbers that are sent by the server in response to a client's request. Some of the most common response codes include:

  • 2xx: Success codes, like 200 OK, which means the request was successful and the server is sending back the requested data.
  • 3xx: Redirection codes, like 301 Moved Permanently, which means the requested resource has moved to a new location and the client needs to update its URL.
  • 4xx: Client error codes, like 404 Not Found, which means the requested resource couldn't be found on the server.
  • 5xx: Server error codes, like 500 Internal Server Error, which means there was an error on the server that prevented it from fulfilling the request.
Loading component...

Headers

HTTP defines a set of headers that can be used to provide additional information about a request or response. Headers are key-value pairs that are included in the HTTP message.

Headers provide more context about the request or response and can be used for a variety of purposes, such as:

  • Authorization headers can be used to include authentication credentials with a request to access protected resources.
  • Cache-Control headers can be used to specify how long a client should cache a response to avoid unnecessary requests to the server.
  • Content-Type headers can be used to indicate the type of data being sent in the request or response, such as JSON or XML.
  • Accept headers can be used to specify which data type a client can accept in the response.

Message formats

HTTP messages are the way that clients and servers communicate with each other. There are two types of HTTP messages: requests and responses.

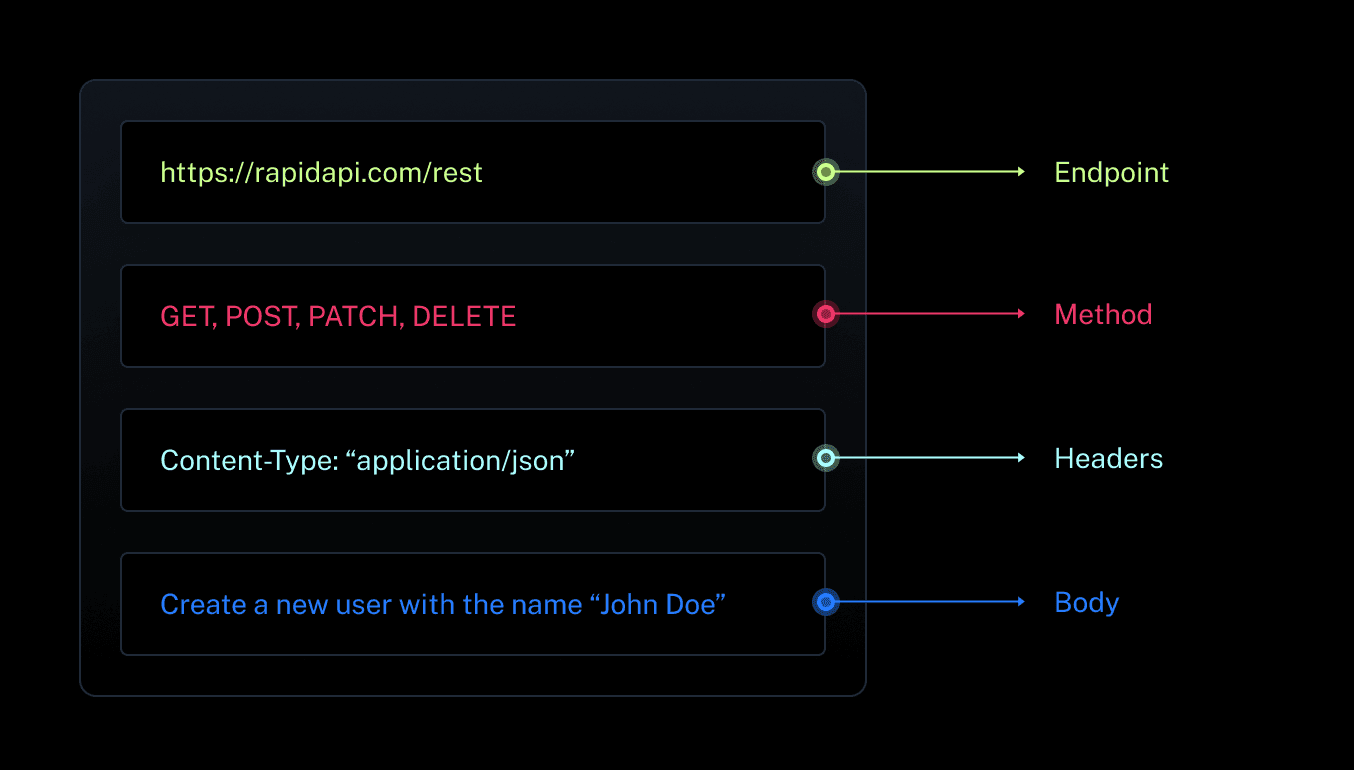

An HTTP request message is sent by a client, like a web browser, to a server, and it consists of three parts:

  • Request line: This includes the HTTP method being used, the URL of the resource being requested, and the version of the HTTP protocol being used.
  • Headers: These are additional pieces of information sent along with the request that provide more context about the request, as explained in my previous answer.
  • Body: This is an optional part of the message that contains data being sent along with the request, such as form data or JSON.

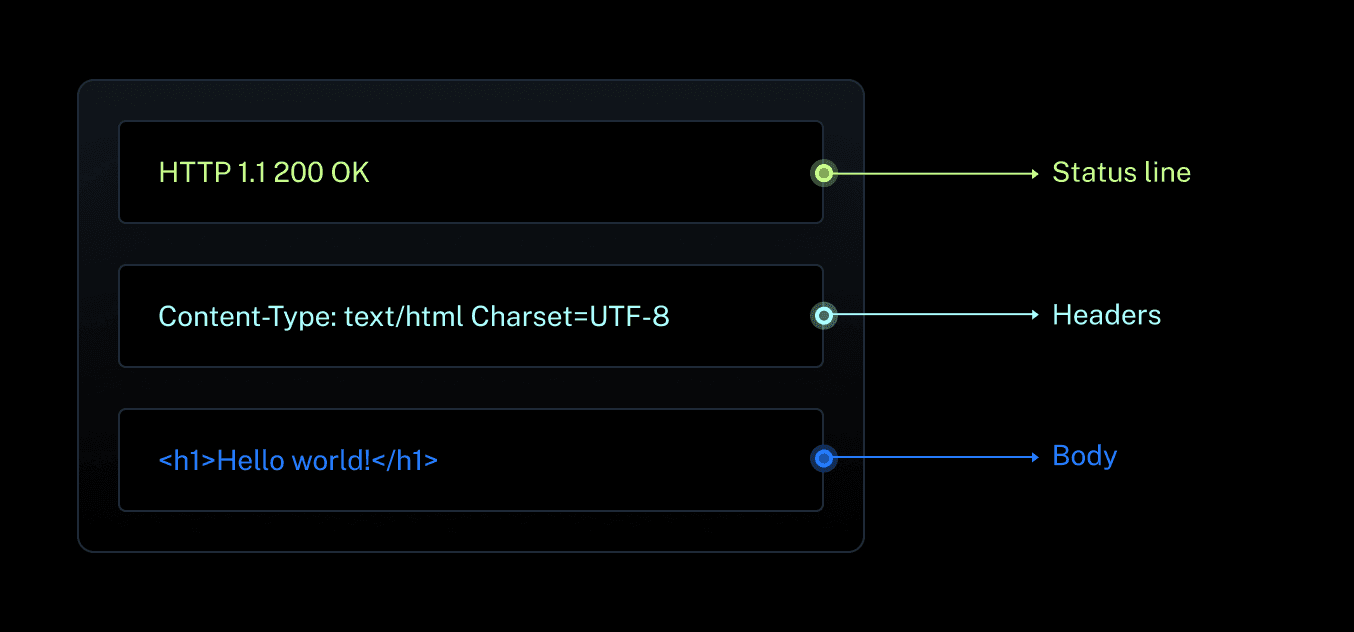

An HTTP response message is sent by a server to a client in response to an HTTP request, and it also consists of three parts:

  • Status line: This includes the HTTP version being used, a response code indicating whether the request was successful or not, and a short message explaining the response code.
  • Headers: These are additional pieces of information sent along with the response, as explained in my previous answer.
  • Body: This is an optional part of the message that contains the data being sent back to the client, such as HTML or JSON.

Different types of HTTP headers

HTTP headers are additional pieces of information that can be sent along with an HTTP request or response. There are several types of HTTP headers, but the most common ones are:

Request headers

Request headers are sent by the client to the server and provide additional information about the request. For example, the "User-Agent" header specifies the type of client making the request, while the "Accept" header specifies the type of content that the client can handle.

Response headers

Response headers are sent by the server to the client and provide additional information about the response. For example, the "Content-Type" header specifies the type of content that the server is sending, while the "Cache-Control" header specifies how long the client can cache the response.

Entity headers

Entity headers are sent with the entity body of a request or response and provide additional information about the content. For example, the "Content-Length" header specifies the length of the entity body, while the "Content-Encoding" header specifies the encoding used to compress the content.

Different types of HTTP methods

HTTP methods are verbs that are used to describe the action that a client wants to perform on a resource. There are several types of HTTP methods, including:

GET

This method is used to retrieve a resource from the server. When a client sends a GET request, the server responds with the requested resource. This method is idempotent, which means that sending the same request multiple times should have the same effect as sending it once.

POST

This method is used to submit data to the server for processing. When a client sends a POST request, the server processes the data and sends back a response. This method is not idempotent, which means that sending the same request multiple times may have different effects.

PUT

This method is used to update an existing resource on the server. When a client sends a PUT request, the server replaces the existing resource with the new data provided by the client. This method is idempotent, which means that sending the same request multiple times should have the same effect as sending it once.

DELETE

This method is used to delete a resource from the server. When a client sends a DELETE request, the server removes the specified resource from its storage. This method is idempotent, which means that sending the same request multiple times should have the same effect as sending it once.

OPTIONS

This method is used to retrieve information about the communication options available for a resource. When a client sends an OPTIONS request, the server responds with a list of the available methods, headers, and other communication options for the specified resource.

This method is similar to the GET method, but it only retrieves the headers for a resource and not the body. When a client sends a HEAD request, the server responds with the headers for the specified resource but does not send the actual content.

CONNECT

This method is used to establish a network connection to a resource. When a client sends a CONNECT request, the server responds with a tunnel that can be used to establish a secure connection to the specified resource.

TRACE

This method is used to retrieve a diagnostic trace of the communication between a client and a server. When a client sends a TRACE request, the server responds with a message that contains a copy of the request and response headers.

What is a REST API?

REST (Representational State Transfer) APIs allow computers to talk to each other over the internet in a way that is standardized and easy to understand.

Loading component...

Imagine a waiter taking your order at a restaurant. You tell the waiter what you want, and the waiter goes to the kitchen to get it. When the food is ready, the waiter brings it back to you. In the same way, REST APIs allow one computer to ask another computer for information or to perform an action, like creating a new user account.

The computer sending the request uses standard language (HTTP) to make the request, and the computer receiving the request responds with standard language as well. This makes it easy for different computers, written in different programming languages, to communicate with each other.

REST is a software architectural style for building web services that allow communication between applications over the internet. REST is an approach that emphasizes simplicity, scalability, and flexibility. RESTful APIs (Application Programming Interfaces) are web services that conform to the REST architectural style.

Key features of REST APIs

REST APIs allow applications to interact with each other over the internet by sending and receiving data in a standardized way. The use of RESTful APIs has become increasingly popular due to the rise of web and mobile applications that need to communicate with each other, and with servers that host data and resources. RESTful APIs allow applications to communicate without being tightly coupled, which means that changes to one application won't necessarily impact the other application.

Some key features of RESTful APIs include:

Client-server architecture

A client-server architecture, where the client (such as a mobile app or web application) interacts with the server (which provides data and resources) via HTTP requests and responses. Client-server architecture is like a restaurant. The server, who is like the waiter, takes orders from the customers (clients) and sends them to the kitchen (server) to be prepared. When the food is ready, the server brings it back to the table (client) for the customer to enjoy.

Stateless communication

Stateless communication, where each HTTP request contains all the necessary information for the server to understand and fulfill the request. This means that each request contains all the information needed for the server to understand it, so the server doesn't need to keep track of any previous requests. It's like if you asked your mom for a cookie, she wouldn't need to remember that you asked for one before, she would just give you a cookie.

Uniform interface

A uniform interface provides a standardized way for the client to interact with the server. They use a common data format, usually JSON or XML, to exchange information. This means that the information being sent and received is in a format that both the client and server can understand. It's like if you and your friend were from different countries, you might need to speak a common language like English to understand each other.

Use of standard HTTP request methods The use of standard HTTP request methods (GET, POST, PUT, DELETE, etc.) to perform CRUD (Create, Read, Update, Delete) operations on resources. These methods are like tools in a toolbox, and each one is designed to do a specific job. GET is used to retrieve information, POST is used to create new information, PUT is used to update information, and DELETE is used to delete information. It's like using a hammer to put a nail in a piece of wood, and a saw to cut the wood.

Use of hypermedia

The use of hypermedia, where the response from the server includes links to related resources, allows the client to navigate through the API. They use URLs to identify resources. This means that each resource has its own unique URL that can be used to access it. It's like a street address for a house - each house has its own address that can be used to find it.

Principles of REST API

Roy Fielding created REST in 2000. REST (Representational State Transfer) APIs are those APIs that follow the guidelines of REST architecture. They are also known as RESTful APIs.

REST APIs follow six design principles which are as follows:

Client-server Separation

Think of a waiter taking an order from a customer in a restaurant. The waiter is like the server and the customer is like the client. In the same way, the server provides services to the client, but they are separate and don't depend on each other.

Stateless

Imagine you go to a shop to buy something, and the shopkeeper doesn't remember you from your previous visit. Similarly, the server doesn't remember anything about the previous requests made by the client. Each request contains all the information needed to process it, like ordering a pizza without the pizza maker remembering your previous orders.

Cacheable

Sometimes when you go to a shop, the shopkeeper may remember the item you bought and suggest something similar. Similarly, the server can store the response to a request and use it to respond to future requests more quickly. This is called caching.

Layered System

Just like a building has multiple floors, a RESTful API can have multiple layers, with each layer providing a different function. The client can interact with the top layer without knowing anything about the layers below it.

Uniform Interface

Imagine a menu in a restaurant that has pictures and descriptions of each dish. In the same way, a RESTful API should have a consistent interface that all clients can understand. This includes using standard HTTP methods like GET, POST, PUT, and DELETE, and using URLs to identify resources.

Code on Demand (optional)

Some RESTful APIs may provide executable code to the client, like a JavaScript function. This can be useful for adding additional functionality to the client without requiring it to be built into the initial application.

Anatomy of a REST API

A RESTful API is a web service that follows the principles of the REST architectural style. RESTful APIs use HTTP methods (such as GET, POST, PUT, and DELETE) to interact with resources, which are typically represented using JSON or XML formats. Here is a breakdown of the key components of a RESTful API:

Resource

A resource is something that can be accessed by a REST API, such as a user, an article, or a photo. A resource is an object or concept that can be accessed via a URL. Resources are the fundamental building blocks of a RESTful API. Each resource should have a unique identifier, which is typically represented using a URL. For example, a resource representing a user might be accessed via the URL /users/{id}, where {id} is the unique identifier for that user.

HTTP methods

HTTP methods are used to perform different actions on a resource, such as retrieving it, creating it, updating it, or deleting it. RESTful APIs use standard HTTP methods (such as GET, POST, PUT, and DELETE) to interact with resources. Each method corresponds to a specific action that can be performed on the resource. For example, the GET method is used to retrieve a resource, while the POST method is used to create a new resource. The PUT method is used to update an existing resource, while the DELETE method is used to delete a resource.

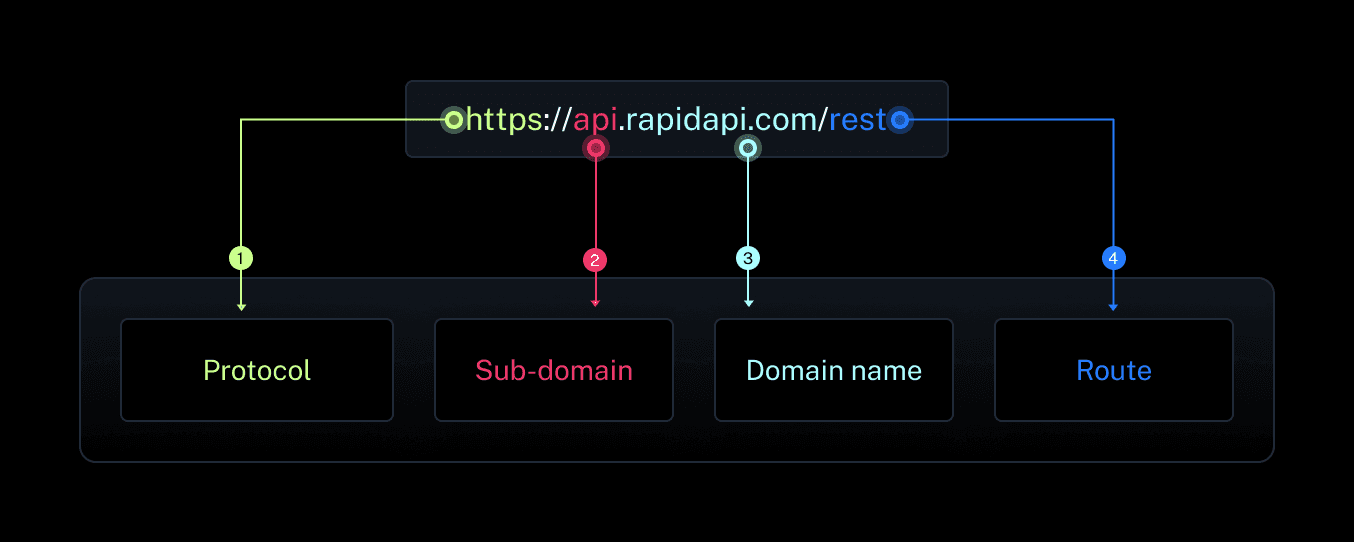

URI

A URI (Uniform Resource Identifier) is a unique identifier for a resource. URIs typically consist of a base URL and a path, which identifies the specific resource. For example, the URI for a user resource might be http://example.com/api/users/{id}, where {id} is the unique identifier for the user.

HTTP headers

HTTP headers are used to provide additional information about a request or response. Headers can be used to provide information about the data being sent or received, as well as information about the client or server making the request. Some common headers used in RESTful APIs include Content-Type (which indicates the format of the data being sent or received) and Authorization (which provides authentication information for the request).

Request body

The request body is the data that is sent in a POST or PUT request. The data is typically represented using JSON or XML format. The request body contains the information that is needed to create or update a resource.

Response body

The response body is the data that is returned by the server in response to a request. The data is typically represented using JSON or XML format. The response body contains the information that is requested by the client.

Status codes

Status codes are used to indicate the status of a request or response. Status codes are three-digit numbers that are returned by the server in response to a request. Some common status codes used in RESTful APIs include 200 OK (which indicates that the request was successful) and 404 Not Found (which indicates that the requested resource could not be found).

CRUD Operations

Let's imagine we have a simple web application that allows users to manage a collection of books. Here are some examples of how CRUD operations might be used in this context:

Create

Suppose the user wants to add a new book to the collection. They might fill out a form with information about the book, such as the title, author, and publication date. When they submit the form, the web application would send an HTTP POST request to the server with the new book data in the request body. The server would then create a new record in its database with the book data.

Read

Suppose the user wants to view a list of all the books in the collection. They might click a "View Books" button in the web application, which would send an HTTP GET request to the server. The server would then retrieve all the book records from its database and return them to the client application in the response body.

Update

Suppose the user wants to edit the information for a particular book in the collection. They might click an "Edit" button next to the book they want to update, which would open a form pre-populated with the book's existing data. The user could then make changes to the form and submit it, which would send an HTTP PUT or PATCH request to the server with the updated book data in the request body. The server would then update the corresponding record in its database with the new book data.

Delete

Suppose the user wants to remove a book from the collection. They might click a "Delete" button next to the book they want to remove, which would send an HTTP DELETE request to the server with the book's unique identifier included in the request URL. The server would then remove the corresponding record from its database.

Best Practices for REST API

REST APIs are widely used in modern web applications and services. Developing a well-designed and effective REST API requires careful consideration of several key factors. Here are some best practices for REST API development:

Use meaningful resource URIs

Use resource URIs that are easy to understand and identify. A resource URI should clearly indicate what the resource is and what it represents.

Example: https://api.example.com/books/123.

Use HTTP methods correctly

HTTP methods like GET, POST, PUT, and DELETE should be used correctly to perform the appropriate action on the resource. For example, use GET to retrieve a resource, POST to create a resource, PUT to update a resource, and DELETE to delete a resource. Also, ensure that the appropriate HTTP status codes are returned with the response.

Use the appropriate HTTP method for each operation. Use GET for reading data, POST for creating data, PUT or PATCH for updating data, and DELETE for deleting data.

Example: Using the POST method to create a new book:

bash
POST /books
{
"title": "The Great Gatsby",
"author": "F. Scott Fitzgerald",
"publication_year": 1925
}

Use HTTP response codes correctly

Use the appropriate HTTP response code to indicate the outcome of the operation. Use 200 for successful operations, 201 for newly created resources, 204 for successful deletes, 400 for bad requests, and 404 for not found errors.

Example: Returning 200 OK response code for a successful GET request:

bash
GET /books/123 HTTP/1.1
Host: api.example.com
HTTP/1.1 200 OK
Content-Type: application/json
{
"title": "The Great Gatsby",
"author": "F. Scott Fitzgerald",
"publication_year": 1925
}

Use nouns instead of verbs in URIs

Use nouns instead of verbs in URIs to represent the resources. This approach makes the API more intuitive and easier to use. For example, instead of using /createUser, use /users.

Use consistent naming conventions

Use consistent naming conventions for resource endpoints, HTTP methods, and request/response structures. This helps to improve the readability and maintainability of the API.

Provide comprehensive documentation

Provide comprehensive documentation for the API, including details about the endpoints, parameters, and expected responses. This documentation can be in the form of API reference documents or interactive API documentation tools.

Versioning

Versioning of the API is important to ensure that changes in the API do not break the existing functionality. Versioning can be done by including the version number in the URI, headers, or as a parameter.

Example: Adding a version number to the URI:

bash
https://api.example.com/v1/books

Use proper security measures

API security is critical, and it is important to use proper security measures such as authentication, authorization, and encryption. This can be done using industry-standard protocols like OAuth2 and JSON Web Tokens.

Consider performance

Performance is another important factor in API development. To ensure optimal performance, developers should consider aspects like response times, caching, and optimizing database queries.

Use pagination for large data sets to improve performance and reduce the amount of data returned in a single response.

Example: Using pagination to return 10 books at a time:

bash
GET /books?page=1&limit=10 HTTP/1.1
Host: api.example.com
HTTP/1.1 200 OK
Content-Type: application/json
{
"books": [
{ "title": "The Great Gatsby", "author": "F. Scott Fitzgerald", "publication_year": 1925 },
{ "title": "To Kill a Mockingbird", "author": "Harper Lee", "publication_year": 1960 },
...
],
"page": 1,
"limit": 10,
"total": 100
}

Handle errors gracefully

It is essential to handle errors gracefully in REST APIs. Errors should be well-defined, and the API should return the appropriate HTTP status codes and error messages.

By following these best practices, developers can create REST APIs that are easy to use, secure, scalable, and maintainable.

Building a REST API

Building a REST API involves designing the API, choosing the appropriate tools and technologies, and implementing the API. The process typically involves the following steps:

Identify the resources

Identify the resources that the API will provide access to, and define the endpoints that will be used to access these resources.

Choose the appropriate HTTP methods

Choose the appropriate HTTP methods (GET, POST, PUT, DELETE) for each endpoint based on the action being performed.

Design the data model

Design the data model for the API, including the schema for each resource and the relationships between them.

Choose a framework

Choose a framework or library for building the API. Popular choices include Node.js with Express, Ruby on Rails, and Django.

Implement the endpoints

Implement the endpoints for the API, including the request and response formats, error handling, and security.

Test the API

Test the API thoroughly to ensure that it is working correctly and meeting the requirements.

Document the API

Document the API to provide comprehensive documentation for developers who will be using it.

Deploy the API

Deploy the API to a production environment, and monitor its performance to ensure that it is meeting the required levels of scalability and availability.

Security

Security is a crucial aspect of any web application, including REST APIs. In order to ensure that data transmitted over REST APIs are secure and protected, various security measures can be implemented. Some of the key security concepts related to REST APIs include Content Security Policy (CSP), Cross-Origin Resource Sharing (CORS), preventing CORS errors, and the Same-Origin Policy. In this response, we'll take a look at each of these concepts and explain them in simple terms.

CSP

CSP (Content Security Policy) is a security feature that allows you to specify which sources of content (such as scripts, images, and stylesheets) are allowed to be loaded and executed on your website or web application. This helps to prevent attacks such as cross-site scripting (XSS) by blocking unauthorized scripts from being executed.

CORS

CORS (Cross-Origin Resource Sharing) is a mechanism that allows resources (such as fonts, images, and scripts) on a web page to be requested from another domain outside the domain from which the first resource was served. CORS helps to prevent attacks such as cross-site request forgery (CSRF) by limiting which domains can access your API.

Prevention of CORS errors involves configuring your server to send the appropriate headers that tell the browser which domains are allowed to make requests to your API. This can be done by setting the "Access-Control-Allow-Origin" header to the domain or domains that are allowed to access your API.

Same-origin policy

The Same-origin policy is a security feature that restricts web pages from making requests to a different domain than the one that the page originated from. This helps to prevent attacks such as CSRF and XSS by preventing a malicious website from making requests to your API on behalf of a user.

Versioning

REST API versioning refers to the practice of creating multiple versions of an API in order to accommodate changes over time. As new features are added, bugs are fixed, and requirements change, it's often necessary to update an API to reflect these changes. However, because APIs are typically used by many different clients and applications, changing an API can have significant impacts on downstream systems. Versioning can help mitigate these impacts by allowing clients to continue using older versions of the API while new versions are rolled out.

There are several different strategies for versioning REST APIs, each with its own benefits and drawbacks. Some of the most common versioning strategies include:

URL versioning

This involves including the version number in the URL of the API. For example, instead of using https://api.example.com/customers, you might use https://api.example.com/v1/customers to indicate that this is version 1 of the API. As new versions are released, the version number would be incremented in the URL (e.g. https://api.example.com/v2/customers).

Query parameter versioning

Similar to URL versioning, this involves including the version number as a query parameter in the API URL. For example, https://api.example.com/customers?version=1. This approach can be useful when dealing with caching and proxy servers, which may not always pass through URL parameters.

Header versioning

With this approach, the version number is included as a custom header in the API request. For example, the header X-Api-Version: 1 might indicate that version 1 of the API is being used.

Content negotiation

This approach involves using the Accept header in the API request to indicate the desired version of the response. For example, the header Accept: application/vnd.example.api.v1+json might indicate that the client wants to receive a response in version 1 of the API format.

Future of REST APIs

REST APIs have become a standard for building web applications and services over the past decade, and their popularity shows no signs of waning. As the world becomes increasingly connected and more devices and platforms come online, the future of REST APIs looks bright.

Here are some potential developments that could shape the future of REST APIs:

Increased adoption of GraphQL

GraphQL is a query language for APIs that was developed by Facebook. It offers a more flexible and efficient alternative to REST APIs for querying data and has gained popularity in recent years. Some experts believe that GraphQL may eventually replace REST APIs altogether.

The rise of microservices

Microservices architecture has become increasingly popular in recent years as a way to build large-scale applications. Microservices are small, independent services that can be developed and deployed independently, and communicate with each other via APIs. REST APIs are a natural fit for building microservices, and we can expect to see more microservices-based architectures in the future.

Increased use of AI and machine learning

As AI and machine learning become more prevalent, we can expect to see REST APIs that are specifically designed to support these technologies. APIs for natural language processing, image recognition, and other AI applications are already available, and we can expect to see more in the future.

Greater focus on API security

API security is becoming increasingly important as more companies rely on APIs to exchange data and integrate with other systems. We can expect to see a greater focus on API security in the future, with more tools and technologies being developed to help developers secure their APIs.

More tools and frameworks for API development

As the demand for APIs continues to grow, we can expect to see more tools and frameworks being developed to help developers build and deploy APIs more easily. These tools will likely focus on improving developer productivity, increasing scalability, and reducing the complexity of API development.

Overall, the future of REST APIs looks bright, with continued growth and innovation in the years to come. As more devices and platforms come online, and as new technologies like AI and machine learning become more prevalent, REST APIs will continue to play a critical role in powering the connected world.

Next steps

REST APIs are a powerful and flexible way of building web applications that can be accessed from a variety of different devices and platforms. By understanding the basic principles of REST APIs and following best practices, developers can create APIs that are efficient, scalable, and easy to use. In addition, by implementing security measures such as CSP, CORS, and Same-Origin Policy, developers can ensure that REST APIs are secure and protected against potential attacks.

You can learn more about REST APIs from the following API Guides:

You can also continue to explore this topic in more depth by experimenting with building your own APIs, or by diving deeper into advanced concepts such as API versioning, rate limiting, and authentication.

You can also start building projects using REST APIs from Rapid’s API Hub. You can use our Open Source starter kits and projects for building APIs & Applications with Rapid’s API Hub.

You can test your knowledge of REST APIs by building the following projects:

You can also build full-stack projects by learning from our API Courses. Some of the interesting projects that you can build are:
